NADCAP thermocouples de traitement thermique

banner-thermocoupleNADCAP is a quality process standard increasingly deployed in the aerospace industry.
The NADCAP heat treatment is asking for high quality thermocouples to monitor the homogeneity and stability in heat treatment furnaces with high accuracy.

Thermocouple heat treatment:

The thermocouple measures the temperature in the heat treatment furnace in real time. These values are the key parameters to demonstrating the quality and validity of the heating process.

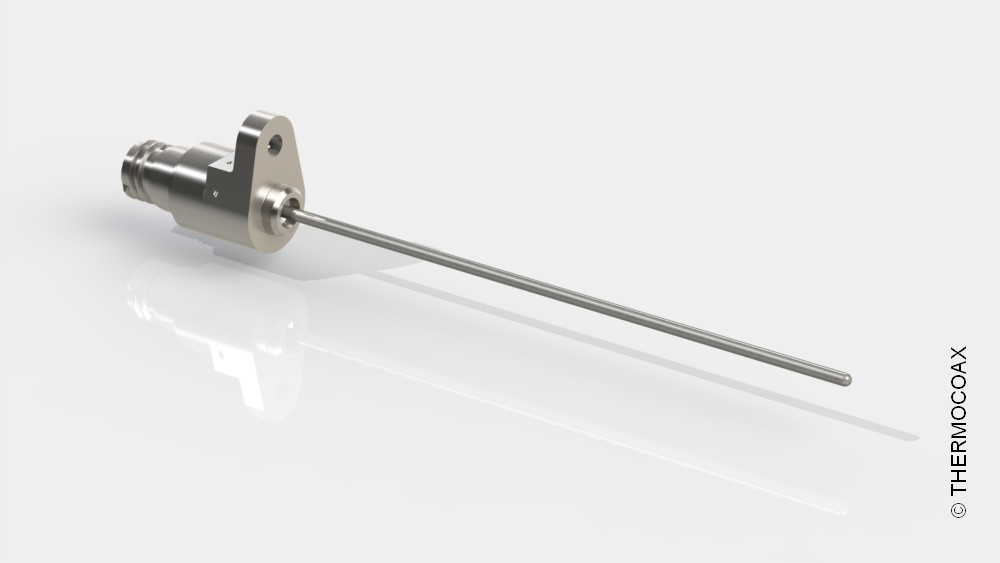

AERONAUTIC - brake thermocouple - THERMOCOAX

For an optimum quality process, THERMOCOAX is producing high quality class 1 thermocouple cables. We are using the AMS2750 standard regarding accuracing and thermocouple controls

As a thermocouple cable manufacturer, we calibrate only the cable to avoid calibrating the thermocouple itself. By this methodology, we support our customers in their cost reduction policy.

Thermocouples Key Parameters:

THERMOCOAX home-made mineral insulated thermocouple cable
Calibration of the cable batch, at each ends and in the middle.

Advantage: Avoids calibratingeach thermocouple, cost reduction.

Compliantwith AMS2750

Thermocouples type J, K or N type, class1 in accordance with IEC582

Sheath Alloy: Stainless Steel, Inconel, Haynes 214
Diameter: 0.25 up to 6mm
Length: no limitation
Easy shaping for better integration
